Product Parameters：
Product name: 300 liters per hour reverse osmosis equipment
Operation mode: fully automatic operation
Shelf material: 304 stainless steel
Dimensions: 1300*600*1700
Bare machine weight: 190kg
Pipeline diameter: DN20
Power: 1.5KW
Voltage: 220v single item
Core functions of the equipment:
This equipment is a small-scale reverse osmosis (RO) pure water preparation system. The core objective is to remove the vast majority of dissolved salts, organic matter, colloids, bacteria and viruses from raw water (such as tap water, groundwater and surface water) through physical filtration and ion exchange processes, and to produce pure water with low electrical conductivity and high purity (with a water production capacity of 0.3 cubic meters per hour).

Introduction to Key Components:

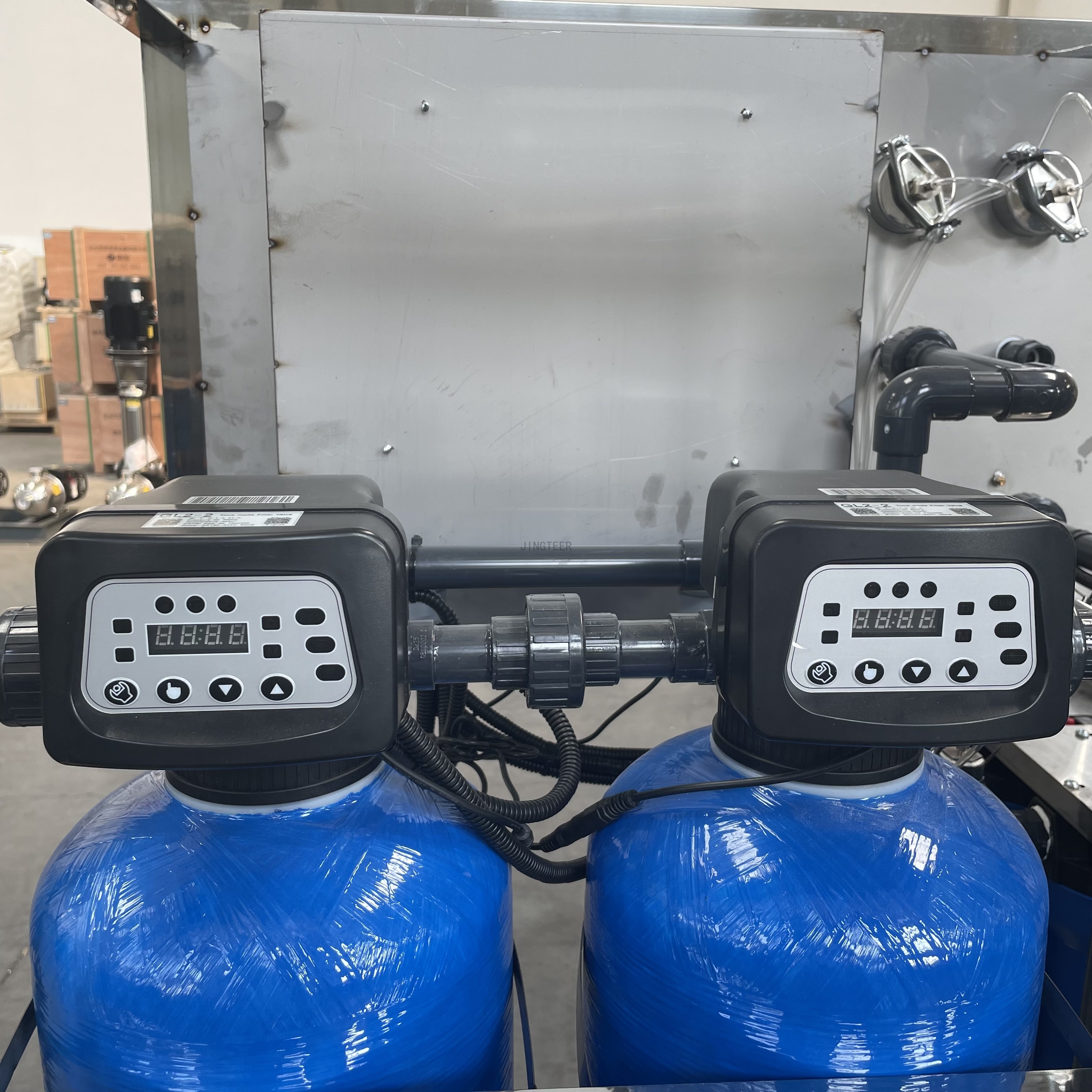

Pretreatment system - Two-tank configuration:

Multi-media filter (first tank) :

Function: As the first-level pretreatment, it mainly removes suspended particles, sediment, rust, colloids, larger impurities, etc. from the raw water. Protect the subsequent softening resin and RO membrane from clogging and contamination.

Medium: It is usually composed of multiple layers of filter materials such as quartz sand and anthracite of different particle sizes, and impurities are removed by deep filtration and interception.

Maintenance: Regular backwashing is required to use reverse water flow to flush out the trapped dirt from the tank and restore the filtration capacity.

Softener (Second tank) :

Function: As the second-level pretreatment, it mainly removes calcium ions (Ca²⁺) and magnesium ions (Mg²⁺) from water to reduce water hardness.

Principle: The tank is filled with sodium-type ion exchange resin. Convert hard water into soft water.

Importance: Preventing scaling (water scale) on the surface of RO membranes is a crucial step in protecting the lifespan of RO membranes, maintaining a stable desalination rate and water production.

Reverse osmosis (RO) mainframe:

Core component: RO membrane element. Use roll-type polyamide composite membranes (membrane elements of 4040 specification).

Principle: Under the high pressure provided by a high-pressure pump (usually a centrifugal pump), the raw water is forced to pass through an extremely precise RO membrane (with a pore size of approximately 0.0001 microns). Water molecules can pass through the membrane to become pure water (product water), while the vast majority of dissolved salts, organic matter, colloids, bacteria, viruses, etc. are intercepted by the membrane and discharged as concentrated water (wastewater).

Desalination rate: It can usually reach 95%-98%, and the electrical conductivity of the produced water is significantly reduced.

The ratio of product water to concentrated water: Depending on the quality of the raw water and the design, the ratio of pure water to wastewater is usually 1:1, and can reach up to 3:1 at most. Concentrated water can be recycled (such as for flushing toilets and greening) or discharged.

Frame structure - Stainless steel

Advantages:

High strength and rigidity: Provides stable support for all components such as water pumps, pressure vessels, valves, and pipes.

Excellent corrosion resistance: It can resist the corrosion of water vapor and chemical agents (such as salt and flocculant residues) in the water treatment environment, and will not rust after long-term use, ensuring the durability and aesthetic appearance of the overall structure of the equipment.

Easy to clean and maintain.

Piping System - UPVC

Material: Unplasticized polyvinyl chloride.

Advantages:

Excellent chemical resistance: It has good resistance to water, acids, alkalis, salt solutions, etc., and is very suitable for water treatment environments, especially capable of withstanding brine used for softening and regeneration.

Smooth inner wall: Low fluid resistance, not prone to scaling, and smooth water flow.

Light weight: Easy to install and move.

High cost-effectiveness: Compared with stainless steel pipes or, it has a lower cost while meeting performance requirements.

Easy to process and connect: Usually, adhesive or threaded connections are adopted, which is convenient for construction.

JINGTERThe company is specialized in water treatment equipment, boiler water treatment equipment, EDI high purity water equipment development, design, development, production and manufacturing of water treatment integrated equipment manufacturers. With 20years of water treatment industry accumulation and rich industry experience.

Packaging and transportation：

FAQ：
1.Material of reverse osmosis system?
Support customization, You can choose FRP(fiber glass) filters with U-PVC pipe, stainless steel filters with U-PVC pipe or full stainless steel.
2. What is packing of this machine?
 Is it suitable for shipment? Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you only need to open wooden case to pick up machine.
 3. What is the daily maintenance of water treatment equipment?
 Periodically check the running status of each component of the device. Clean and replace filter elements, membrane components and other consumable products. Keep the area around equipment clean and dry. Record device running data to discover and solve problems in time.
4. How to extend the service life of water treatment equipment?
Choose high quality equipment and accessories. Operate and maintain the equipment in strict accordance with the manual. Regular professional maintenance and maintenance services. Avoid equipment overload for a long time.
